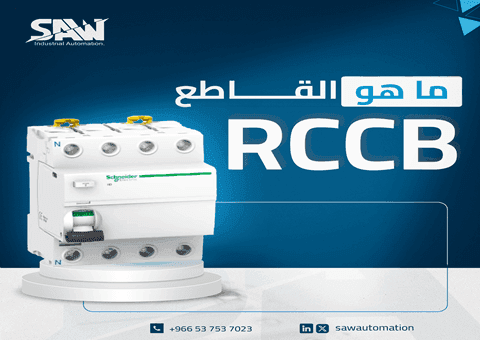

What is the RCCB Circuit Breaker and Its Uses?

The RCCB (Residual Current Circuit Breaker) is one of the most well-known types of circuit breakers. It functions to protect electrical systems from earth leakage and faults in various applications—whether residential, commercial, or industrial. In this article, we will explore the RCCB, how it works, its role in electrical systems, and its most common applications.

What is an RCCB?

An RCCB is a prominent type of circuit breaker used to detect the presence of electrical current leakage to the ground. It disconnects the current from the circuit to prevent electric shocks or fires, making it an essential safety device in any electrical system.

Unlike other circuit breakers, the RCCB offers fundamental protection to both individuals and equipment against electrical faults that could lead to severe hazards such as fires or electric shocks. It achieves this by immediately cutting off the power when a fault is detected.

There are several types of RCCBs, with double-pole and four-pole types being the most popular. The double-pole type is ideal for residential applications that do not require three-phase systems. On the other hand, the four-pole type is more suitable for commercial and industrial applications due to its more advanced protection mechanisms.

What is the Function of RCCB in Electricity?

A frequently asked question is: “What is the function of an RCCB in electricity?” The RCCB’s primary role is to provide safety and protection to electrical systems in the event of faults, ensuring both people and equipment are safeguarded from electrical hazards.

It operates based on a principle of detection and response by sensing residual currents to identify faults or leakage. Upon detection, it immediately disconnects the circuit. The main components of the RCCB include the operating mechanism, sensing coils, and the tripping mechanism.

The RCCB's mechanism allows it to detect residual currents through surrounding live and neutral conductors. If an imbalance in current occurs, the sensing coil generates a magnetic field proportional to the difference. This triggers the tripping mechanism, which quickly disconnects the circuit to minimize damage, injury, or loss.

Difference Between RCCB and RCBO

There are many types of circuit breakers for earth leakage protection, with RCCB and RCBO being the most well-known. Here’s how they differ:

• Overview:

RCCB is designed specifically to protect against earth leakage in circuits. RCBO, however, protects against earth leakage, short circuits, and overloads, as it combines RCCB and MCB features.

• Main Function:

The RCCB focuses on preventing electric shocks and fires due to leakage. The RCBO provides dual protection—leakage, short circuits, and overloads.

• Working Mechanism:

RCCB works by comparing the current entering and leaving a circuit. Any difference suggests a leakage fault, prompting disconnection.

RCBO performs a similar comparison but includes an MCB element to handle overloads and short circuits, offering broader protection.

• Installation:

RCBO is easier to install since it includes both RCCB and MCB functionalities in one unit. RCCB requires a separate MCB, which needs more space in the distribution board.

• Cost:

RCCBs are more cost-effective, making them suitable for those seeking budget-friendly leakage protection. RCBOs are more expensive due to their added protection features.

Does Installing an RCCB Replace the Need for Electrical Earthing?

A common question is whether installing an RCCB eliminates the need for electrical earthing. To clarify, the earthing system allows excess electrical charges to safely dissipate into the ground.

Electrical earthing is vital for protecting individuals from electric shocks, safeguarding equipment from overload damage, stabilizing voltage, and ensuring accurate voltage measurement. It is a crucial part of any electrical system and must be installed per the required standards.

While an RCCB is useful in detecting and preventing earth leakage—especially in systems lacking proper earthing or where earthing is outdated—it cannot fully replace the function of earthing. Therefore, a comprehensive earthing system is necessary to ensure optimal safety and protection for electrical installations.

Where Should RCCBs Be Used?

After learning about the RCCB and how it works, you might wonder where it should be used. RCCBs are widely applicable in the following areas:

• Industrial Applications:

In industrial facilities, RCCBs are crucial for minimizing earth leakage risks caused by equipment failure, ground faults, or wire damage. They can detect issues and disconnect circuits within as little as 40 milliseconds.

• Commercial Applications:

Businesses also rely on RCCBs to protect against leakage, fire risks, electric shocks, and equipment damage. They disconnect the faulty circuits rapidly, maintaining safety and reducing downtime and maintenance costs.

• Medical Applications:

In medical settings, leakage could compromise sensitive equipment. RCCBs help by isolating faulty circuits to ensure the continued safety and accuracy of medical tools and systems.

Choosing the right RCCB is essential for ensuring the protection of individuals and equipment. Your choice should depend on the application type, sensitivity level, brand reputation, product quality, and budget to ensure reliable and safe operation of electrical systems.
