وصف المنتج

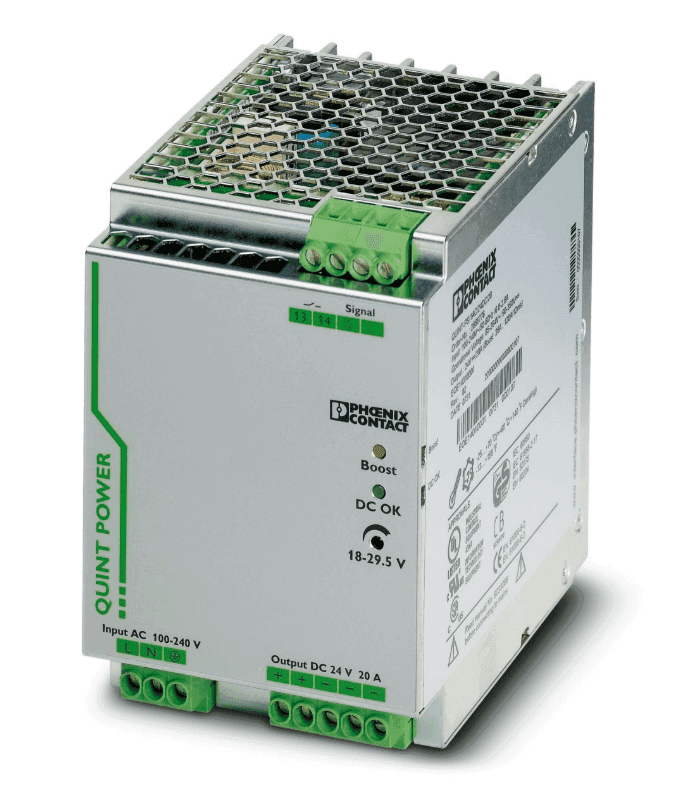

PHOENIX, QUINT-PS/1AC/24DC/20, AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 480 W, 24 VDC, 20 A
Selective Fuse Breaking (SFB): Provides a high short-circuit current for a short time (120 A for 12 ms) so that standard circuit breakers upstream will trip quickly in the event of a short, protecting other parts of the system.
Power Boost (Boost / Static Boost): Allows starting heavy loads safely by giving up to ~1.3× or 1.5× nominal current in certain temperature limits.
Output Voltage
24 V DC ±1 %
Rated Output Current
20 A continuous
Output Power
480 W nominal (≈ 480 W at 24 V × 20 A)
Width: 90 mm
Height: 130 mm
Depth: 125 mm
