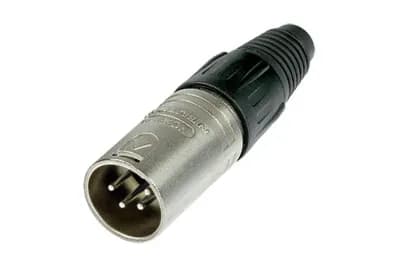

Neutrik NC4MX | 4-Pin Male XLR Cable Connector

The Neutrik NC4MX is a professional 4-pin male XLR connector engineered to create secure, high-quality links in audio, lighting, and industrial circuits. Its sturdy zinc-diecast housing and silver-plated pins ensure precise signal flow and resist wear in harsh working conditions.

Assembly is quick and tool-free; snap together the four pieces without screws so that technicians can move from job to job without delays. A chuck-type strain relief grips the cable firmly, while a polyurethane boot with a rubber gland shields the joint from flexing and moisture.

Whether you are refreshing an existing system or starting a new build, the NC4MX brings Neutrik reliability and performance to every patch.

Key Features:

• Rugged zinc die-cast housing ensures years of dependable service.

• Silver-plated brass contacts reduce resistance and promote clear signal transfer.

• The integrated latch locks the plug firmly in place.

• Accommodates cable diameters from 3.5 mm to 8.0 mm.

• Endures more than 1,000 plug-unplug cycles without wear.

• UL-recognized, IP40-rated, flame-retardant per UL 94 V-0.

Technical Specifications:

• Rated current: 10 A

• Rated voltage: < 50 V

• Insulation resistance: > 10 GΩ

• Contact resistance: ≤ 3 mΩ

• Dielectric strength: 1.5 kV DC

• Wire size: Up to 1.5 mm² (16 AWG)

• Temperature range: -30 °C to +80 °C

• Standard compliance: IEC 61076-2-103

Upgrade to the NC4MX for a proven, reliable connection that meets the demands of both professional and industrial-grade applications.
